AMPCell Charging


Charging AMPCell

Remove AMPCell from its travel bag.

Place AMPCell in a cool dry location away from flammable or hot items. Safe charging temperatures are 0 – 40°C and optimal charging temperatures are 10 – 30°C.

Connect AMPCell charger plug to AMPCell by sliding the plug into the dovetail on the end of the AMPCell without the handle.

Connect the wall plug to your power point and turn on.

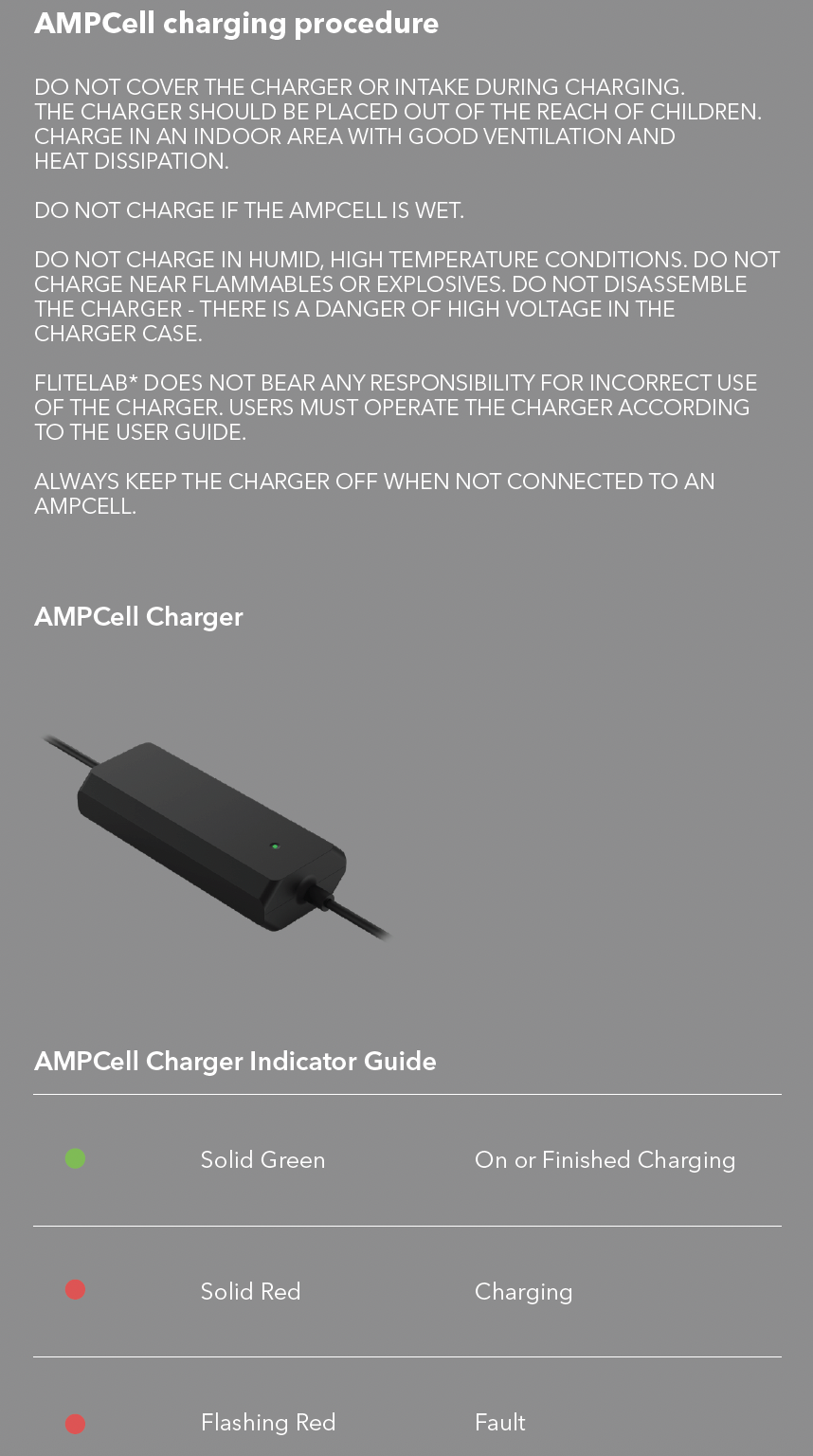

The charger will detect the connected AMPCell and display a green light, which will turn red after approximately 5 seconds to indicate charging has successfully begun.

The charger will automatically stop charging once the AMPCell is full and the charger light will turn green.

Turn off charger at the wall and remove the AMPCell

AMPCELL IS A POWERFUL BATTERY CONTAINING A SIGNIFICANT AMOUNT OF ENERGY. CHARGING A DAMAGED AMPCELL CAN RESULT IN A FIRE OR EXPLOSION. ALWAYS INSPECT THE AMPCELL BEFORE CHARGING. CHARGE THE AMPCELL UNDER SUPERVISION, IN A SAFE LOCATION, AWAY FROM DIRECT SUNLIGHT, MOISTURE AND AWAY FROM FLAMMABLE OBJECTS AND SURFACES.

THE BATTERY MANAGEMENT SYSTEM (BMS) BALANCES AND OPTIMISES AMPCELL DURING EACH CHARGE CYCLE.

IT IS RECOMMENDED TO DISCONNECT THE AMPCELL AFTER A FULL CHARGING CYCLE.
